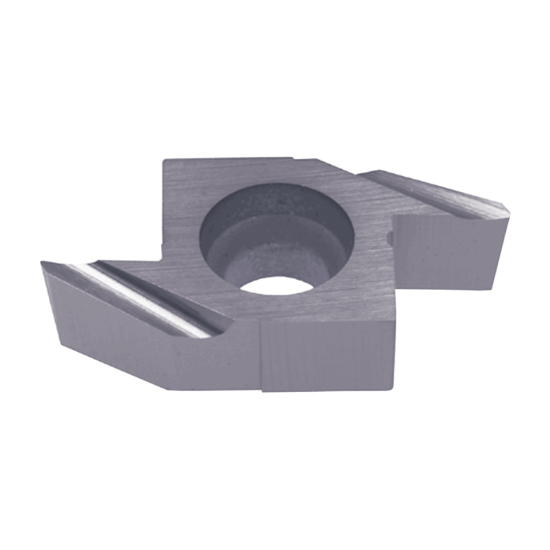

Picture of TUNGALOY J10ER005B J9530 Back Turning, Swiss Insert 60.0° TiN 0.002 Corner Radius

TUNGALOY J10ER005B J9530 Back Turning, Swiss Insert 60.0° TiN 0.002 Corner Radius

ANSI: J10ER005B J9530

ISO: J10ER005B J9530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6723946
Delivery date: 3-5 days
$19.29

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

File Downloads

DXFSTPSTPL

Grade and Coating Description

suitable for small-part machining, For Swiss lathes.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing
Insert Type Positive
Coating TiN
Application Turning Insert, Back Turning Insert, Swiss
Made In USA No
Shipping State Illinois
Grade J9530
Package Size 10
Insert/Tool Insert
Dimensional Specifications
Insert Size Ic ER
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Corner Radius 0.0020 0.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Z Shape
Cutting Edge Mat Cermet
Insert Style J1
