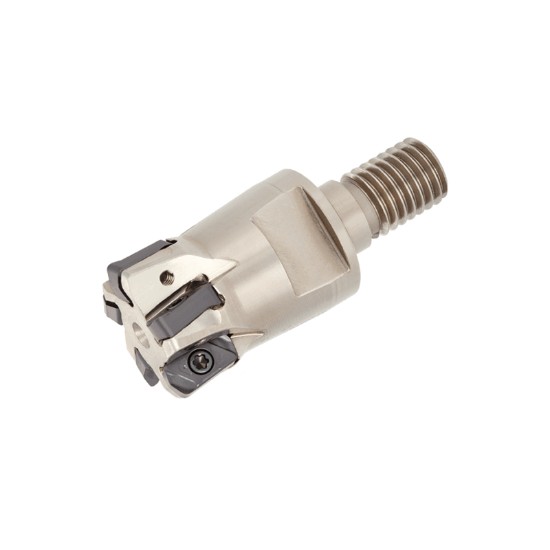

Picture of TUNGALOY HXN03R032MM16-05 Milling Cutter 1.260 Cutter Diameter Screw M16 2.480 OAL 5 Flute

TUNGALOY HXN03R032MM16-05 Milling Cutter 1.260 Cutter Diameter Screw M16 2.480 OAL 5 Flute

ANSI: HXN03R032MM16-05

ISO: HXN03R032MM16-05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6995996
Delivery date: 3-5 days
$518.10

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Face Milling, Copy Milling, Feed Milling
Insert/Tool Tool
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.0390
Machine Side Connection Type Screw On
Cutter Dia 1.2600 32.00MM
Machine Side Connection Size M16
Cut Dia Max 1.2600 32.00MM
Tool Material Steel
Flutes/Inserts 5
Insert Size Ic 30
Cut Dia Min 1.2600 32.00MM
Overall Len 2.4803 63.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Rectagonal
Coolant Thru Yes
Insert Style LN
Hand R/L Right
Fasteners & Connectors
Insert Screw 6815313
