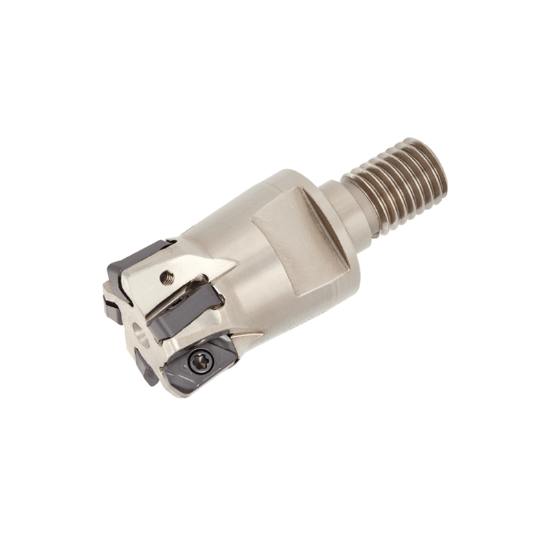

Picture of TUNGALOY HXN03R020MM10-03 Milling Cutter 0.787 Cutter Diameter Screw M10 1.929 OAL 3 Flute

TUNGALOY HXN03R020MM10-03 Milling Cutter 0.787 Cutter Diameter Screw M10 1.929 OAL 3 Flute

ANSI: HXN03R020MM10-03

ISO: HXN03R020MM10-03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6995991
Delivery date: 3-5 days
$402.95

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Copy Milling, Feed Milling, Face Milling, Ramp Milling, Slot Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Overall Len 1.9291 49.00MM
Cut Dia Min 0.7870 19.99MM
Machine Side Connection Type Screw On
Flutes/Inserts 3
Depth Of Cut Max 0.0390
Cutter Dia 0.7870 19.99MM
Insert Size Ic 30
Machine Side Connection Size M10
Cut Dia Max 0.7870 19.99MM
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Rectagonal
Insert Style LN
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6815313
