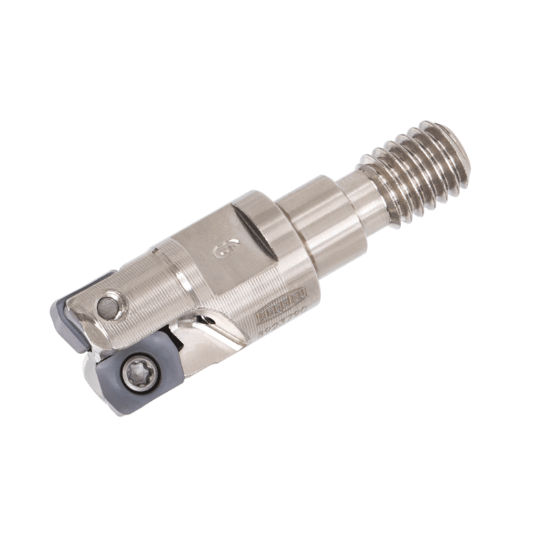

Picture of TUNGALOY HXLS02M010M06R02 Milling Cutter 0.394 Cutter Diameter Screw M06 1.240 OAL 2 Flute

TUNGALOY HXLS02M010M06R02 Milling Cutter 0.394 Cutter Diameter Screw M06 1.240 OAL 2 Flute

ANSI: HXLS02M010M06R02

ISO: HXLS02M010M06R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6772875
Delivery date: 3-5 days
$290.10

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Feed Milling, Face Milling, Ramp Milling, Slot Milling
Insert Type Positive
Insert/Tool Tool
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.3940 10.01MM
Machine Side Connection Type Screw On
Overall Len 1.2402 31.50MM
Depth Of Cut Max 0.0197
Cut Dia Max 0.3940 10.01MM
Insert Size Ic 20
Cut Dia Min 0.2470 6.27MM
Tool Material Steel
Flutes/Inserts 2
Machine Side Connection Size M06
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Coolant Thru Yes
Insert Style LS
Fasteners & Connectors
Insert Screw 6815313
