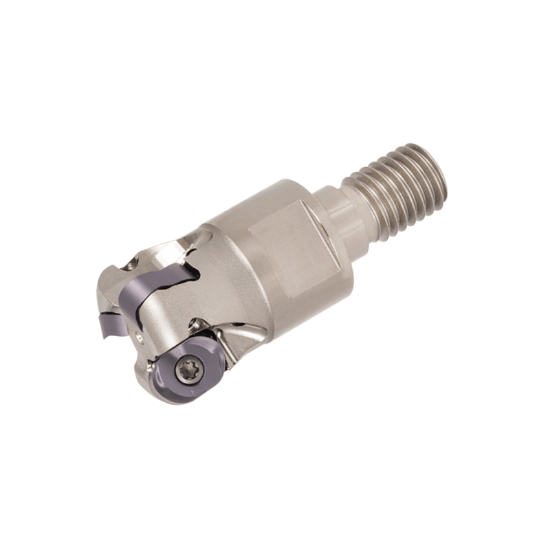

Picture of TUNGALOY HXLN06M032M16R02 Milling Cutter 1.260 Cutter Diameter Screw M16 2.480 OAL 2 Flute

TUNGALOY HXLN06M032M16R02 Milling Cutter 1.260 Cutter Diameter Screw M16 2.480 OAL 2 Flute

ANSI: HXLN06M032M16R02

ISO: HXLN06M032M16R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6776578
Delivery date: 3-5 days
$507.35

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing, Roughing
Application Copy Milling, Feed Milling, Profile Milling
Shipping State Illinois
Insert Type Negative
Made In USA No
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 60
Machine Side Connection Type Screw On
Cut Dia Min 1.2600 32.00MM
Overall Len 2.4803 63.00MM
Tool Material Steel
Cutter Dia 1.2600 32.00MM
Machine Side Connection Size M16
Flutes/Inserts 2
Depth Of Cut Max 0.2360
Cut Dia Max 1.2600 32.00MM
Cutting & Machining Properties
Insert Style LN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Teardrop
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6821842
