  • TUNGALOY HWD07R030MM16-05 Milling Cutter Button Cutter 1.181 Cutter Diameter Screw M16 2.480 OAL 5 Flute

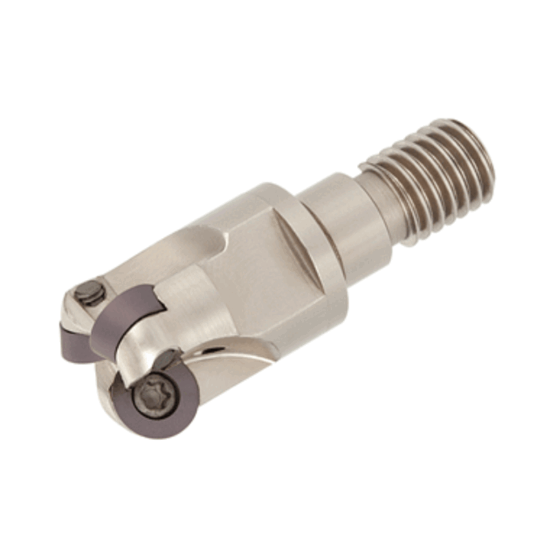

Picture of TUNGALOY HWD07R030MM16-05 Milling Cutter Button Cutter 1.181 Cutter Diameter Screw M16 2.480 OAL 5 Flute

TUNGALOY HWD07R030MM16-05 Milling Cutter Button Cutter 1.181 Cutter Diameter Screw M16 2.480 OAL 5 Flute

ANSI: HWD07R030MM16-05

ISO: HWD07R030MM16-05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6995988
Delivery date: 3-5 days
$505.90
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Round Milling, Pocket Milling, Ramp Milling, Face Milling
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Screw On
Cut Dia Min 0.9060 23.01MM
Tool Material Steel
Machine Side Connection Size M16
Insert Size Ic 7
Overall Len 2.4803 63.00MM
Cutter Dia 1.1810 30.00MM
Depth Of Cut Max 0.1380
Cut Dia Max 1.1810 30.00MM
Flutes/Inserts 5
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RD
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6802565
