  • TUNGALOY HWD07R015MM08-03 Milling Cutter Button Cutter 0.315 Cutter Diameter Screw M08 1.653 OAL 3 Flute

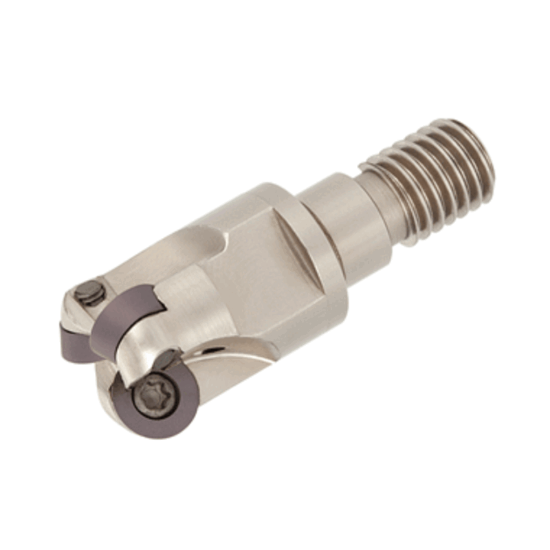

Picture of TUNGALOY HWD07R015MM08-03 Milling Cutter Button Cutter 0.315 Cutter Diameter Screw M08 1.653 OAL 3 Flute

TUNGALOY HWD07R015MM08-03 Milling Cutter Button Cutter 0.315 Cutter Diameter Screw M08 1.653 OAL 3 Flute

ANSI: HWD07R015MM08-03

ISO: HWD07R015MM08-03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6990869
Delivery date: 3-5 days
$322.45
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Round Milling, Face Milling, Ramp Milling
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Insert Size Ic 7
Machine Side Connection Type Screw On
Cutter Dia 0.3150 8.00MM
Cut Dia Max 0.5910 15.01MM
Machine Side Connection Size M08
Depth Of Cut Max 0.1380
Cut Dia Min 0.3150 8.00MM
Overall Len 1.6535 42.00MM
Flutes/Inserts 3
Cutting & Machining Properties
Insert Style RD
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6802565
