  • TUNGALOY HRP12R032MM16-03 Milling Cutter Button Cutter 1.260 Cutter Diameter Screw M16 2.480 OAL 3 Flute

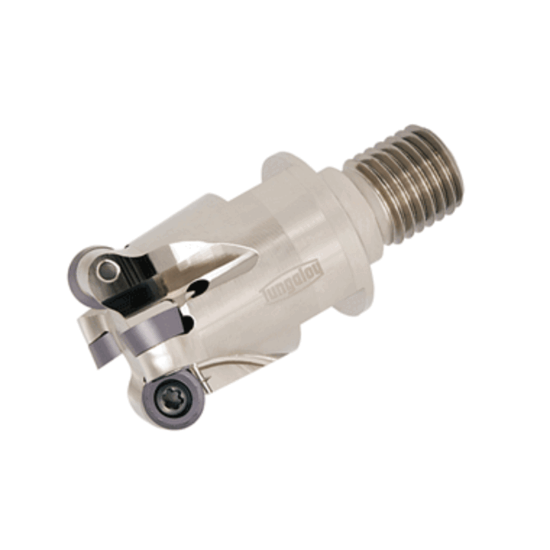

Picture of TUNGALOY HRP12R032MM16-03 Milling Cutter Button Cutter 1.260 Cutter Diameter Screw M16 2.480 OAL 3 Flute

TUNGALOY HRP12R032MM16-03 Milling Cutter Button Cutter 1.260 Cutter Diameter Screw M16 2.480 OAL 3 Flute

ANSI: HRP12R032MM16-03

ISO: HRP12R032MM16-03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6711874
Delivery date: 3-5 days
$435.15

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Application Round Milling, Face Milling, Pocket Milling, Ramp Milling
Insert Type Positive
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.2360
Cut Dia Max 1.2600 32.00MM
Tool Material Steel
Overall Len 2.4803 63.00MM
Insert Size Ic 12
Cutter Dia 1.2600 32.00MM
Machine Side Connection Size M16
Cut Dia Min 0.7870 19.99MM
Machine Side Connection Type Screw On
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RP
Fasteners & Connectors
Insert Screw 7011251
