  • TUNGALOY HRP10R032MM16-04 Milling Cutter Button Cutter 1.260 Cutter Diameter Screw M12 2.480 OAL 4 Flute

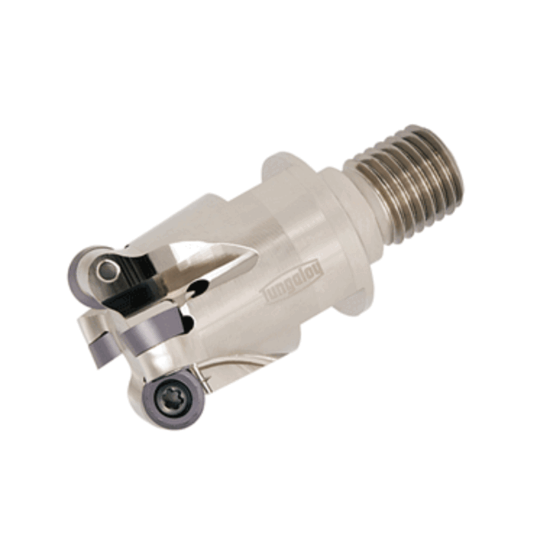

Picture of TUNGALOY HRP10R032MM16-04 Milling Cutter Button Cutter 1.260 Cutter Diameter Screw M12 2.480 OAL 4 Flute

TUNGALOY HRP10R032MM16-04 Milling Cutter Button Cutter 1.260 Cutter Diameter Screw M12 2.480 OAL 4 Flute

ANSI: HRP10R032MM16-04

ISO: HRP10R032MM16-04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6711876
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Round Milling, Pocket Milling, Face Milling
Insert Application Semi Finishing, Roughing
Package Size 1
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Cutter Dia 1.2600 32.00MM
Cut Dia Min 0.8660 22.00MM
Overall Len 2.4803 63.00MM
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Insert Size Ic 10
Cut Dia Max 1.2600 32.00MM
Flutes/Inserts 4
Depth Of Cut Max 0.1970
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
Insert Style RP
Fasteners & Connectors
Insert Screw 6817338
