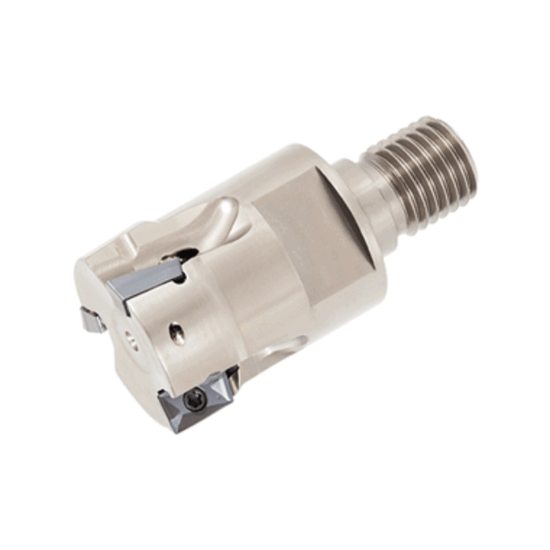

Picture of TUNGALOY HPO11R032MM16-03 Milling Cutter 90.0° 1.260 Cutter Diameter Screw M16 2.480 OAL 4 Flute

TUNGALOY HPO11R032MM16-03 Milling Cutter 90.0° 1.260 Cutter Diameter Screw M16 2.480 OAL 4 Flute

ANSI: HPO11R032MM16-03

ISO: HPO11R032MM16-03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6990867
Delivery date: 3-5 days
$367.25

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Side Milling, Face Milling, Slot Milling
Shipping State Illinois
Insert Type Positive
Made In USA No
Package Size 1
Dimensional Specifications
Machine Side Connection Type Screw On
Cut Dia Min 1.2600 32.00MM
Overall Len 2.4803 63.00MM
Tool Material Steel
Cutter Dia 1.2600 32.00MM
Machine Side Connection Size M16
Depth Of Cut Max 0.1378
Flutes/Inserts 4
Insert Size Ic 11
Cut Dia Max 1.2600 32.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Insert Style AS
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6815313
