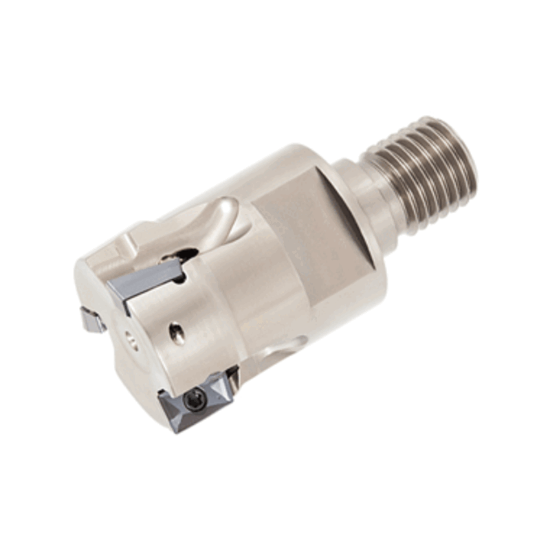

Picture of TUNGALOY HPO11R025MM12-03 Milling Cutter 90.0° 0.984 Cutter Diameter Screw M12 2.244 OAL 3 Flute

TUNGALOY HPO11R025MM12-03 Milling Cutter 90.0° 0.984 Cutter Diameter Screw M12 2.244 OAL 3 Flute

ANSI: HPO11R025MM12-03

ISO: HPO11R025MM12-03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6990865
Delivery date: 3-5 days
$344.95

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Slot Milling, Pocket Milling, Face Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.4173
Cutter Dia 0.9840 24.99MM
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Cut Dia Max 0.9840 24.99MM
Flutes/Inserts 3
Cut Dia Min 0.9840 24.99MM
Tool Material Steel
Overall Len 2.2441 57.00MM
Insert Size Ic 11
Cutting & Machining Properties
Insert Style AS
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Fasteners & Connectors
Insert Screw 6815313
