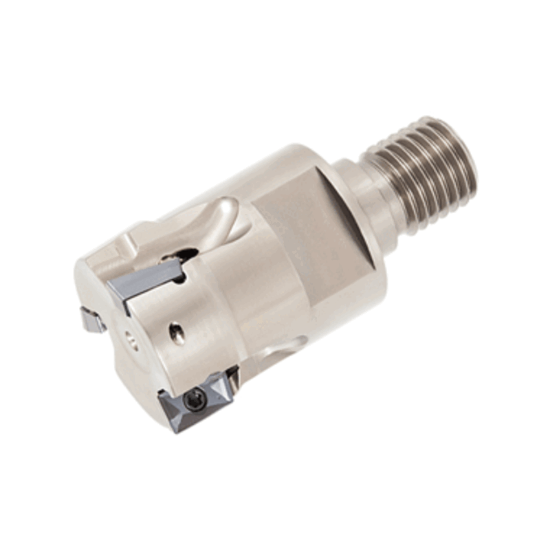

Picture of TUNGALOY HPO11R020MM10-02 Milling Cutter 90.0° 0.787 Cutter Diameter Screw M10 1.929 OAL 2 Flute

TUNGALOY HPO11R020MM10-02 Milling Cutter 90.0° 0.787 Cutter Diameter Screw M10 1.929 OAL 2 Flute

ANSI: HPO11R020MM10-02

ISO: HPO11R020MM10-02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996321
Delivery date: 3-5 days
$324.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Application Ramp Milling, Side Milling, Slot Milling, Pocket Milling, Face Milling
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Dimensional Specifications
Flutes/Inserts 2
Machine Side Connection Size M10
Cut Dia Min 0.7870 19.99MM
Machine Side Connection Type Screw On
Cut Dia Max 0.7870 19.99MM
Tool Material Steel
Depth Of Cut Max 0.0394
Overall Len 1.9291 49.00MM
Insert Size Ic 11
Cutter Dia 0.7870 19.99MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style AS
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Fasteners & Connectors
Insert Screw 6819732
