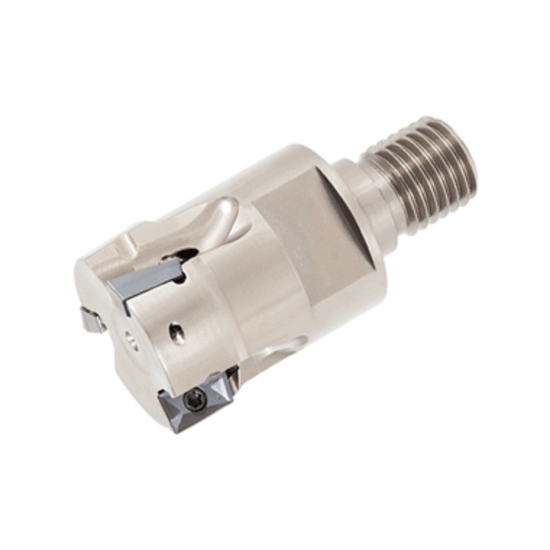

Picture of TUNGALOY HPO07R020MM10-05 Milling Cutter 90.0° 0.787 Cutter Diameter Screw M10 1.929 OAL 5 Flute

TUNGALOY HPO07R020MM10-05 Milling Cutter 90.0° 0.787 Cutter Diameter Screw M10 1.929 OAL 5 Flute

ANSI: HPO07R020MM10-05

ISO: HPO07R020MM10-05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6995984
Delivery date: 3-5 days
$401.55

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Cutter Dia 0.7870 19.99MM
Cut Dia Max 0.7870 19.99MM
Tool Material Steel
Flutes/Inserts 5
Cut Dia Min 0.7870 19.99MM
Machine Side Connection Size M10
Overall Len 1.9291 49.00MM
Insert Size Ic 7
Depth Of Cut Max 0.2756
Machine Side Connection Type Screw On
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Hand R/L Right
Fasteners & Connectors
Insert Screw 7005190
