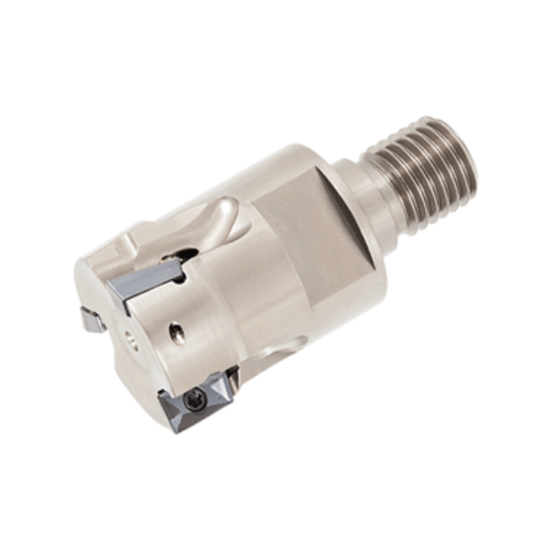

Picture of TUNGALOY HPO07R016MM08-04 Milling Cutter 90.0° 0.630 Cutter Diameter Screw M08 1.653 OAL 4 Flute

TUNGALOY HPO07R016MM08-04 Milling Cutter 90.0° 0.630 Cutter Diameter Screw M08 1.653 OAL 4 Flute

ANSI: HPO07R016MM08-04

ISO: HPO07R016MM08-04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6724232
Delivery date: 3-5 days
$317.65

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Pocket Milling, Side Milling, Face Milling
Made In USA No
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Insert Type Positive
Package Size 1
Dimensional Specifications
Machine Side Connection Type Screw On
Cut Dia Min 0.6300 16.00MM
Depth Of Cut Max 0.1575
Cut Dia Max 0.6300 16.00MM
Cutter Dia 0.6300 16.00MM
Flutes/Inserts 4
Tool Material Steel
Overall Len 1.6535 42.00MM
Insert Size Ic 7
Machine Side Connection Size M08
Cutting & Machining Properties
Insert Style AO
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw 7066668
