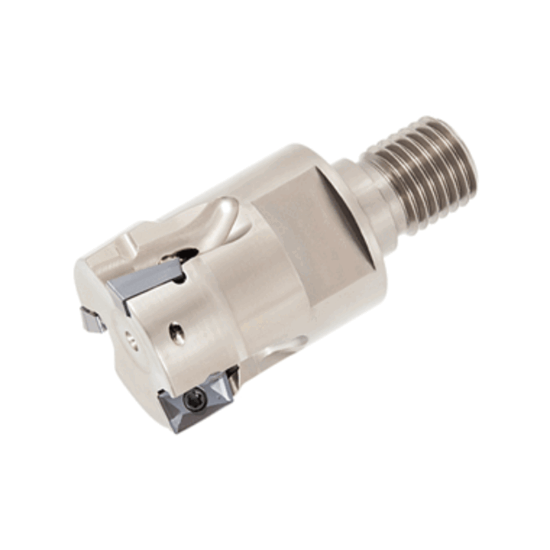

Picture of TUNGALOY HPO07R012MM08-02 Milling Cutter 90.0° 0.472 Cutter Diameter Screw M08 1.653 OAL 2 Flute

TUNGALOY HPO07R012MM08-02 Milling Cutter 90.0° 0.472 Cutter Diameter Screw M08 1.653 OAL 2 Flute

ANSI: HPO07R012MM08-02

ISO: HPO07R012MM08-02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6995981
Delivery date: 3-5 days
$314.75

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Pocket Milling, Ramp Milling, Slot Milling, Face Milling, Side Milling
Shipping State Illinois
Insert Type Positive
Insert/Tool Tool
Package Size 1
Made In USA No
Dimensional Specifications
Insert Size Ic 7
Depth Of Cut Max 0.2756
Machine Side Connection Size M08
Tool Material Steel
Cutter Dia 0.4720 11.99MM
Overall Len 1.6535 42.00MM
Cut Dia Min 0.4720 11.99MM
Cut Dia Max 0.4720 11.99MM
Flutes/Inserts 2
Machine Side Connection Type Screw On
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Insert Style AO
Hand R/L Right
Fasteners & Connectors
Insert Screw 7005190
