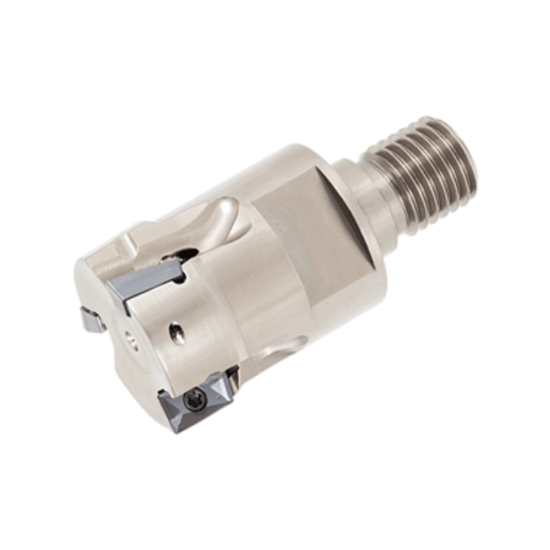

Picture of TUNGALOY HPO07R012MM06-02 Milling Cutter 90.0° 0.472 Cutter Diameter Screw M06 1.555 OAL 2 Flute

TUNGALOY HPO07R012MM06-02 Milling Cutter 90.0° 0.472 Cutter Diameter Screw M06 1.555 OAL 2 Flute

ANSI: HPO07R012MM06-02

ISO: HPO07R012MM06-02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6724231
Delivery date: 3-5 days
$314.75

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Ramp Milling, Slot Milling, Pocket Milling
Insert/Tool Tool
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.4720 11.99MM
Cut Dia Min 0.4720 11.99MM
Cut Dia Max 0.4720 11.99MM
Machine Side Connection Type Screw On
Overall Len 1.5551 39.50MM
Flutes/Inserts 2
Tool Material Steel
Machine Side Connection Size M06
Insert Size Ic 7
Depth Of Cut Max 0.2756
Cutting & Machining Properties
Insert Style AO
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw 7005190
