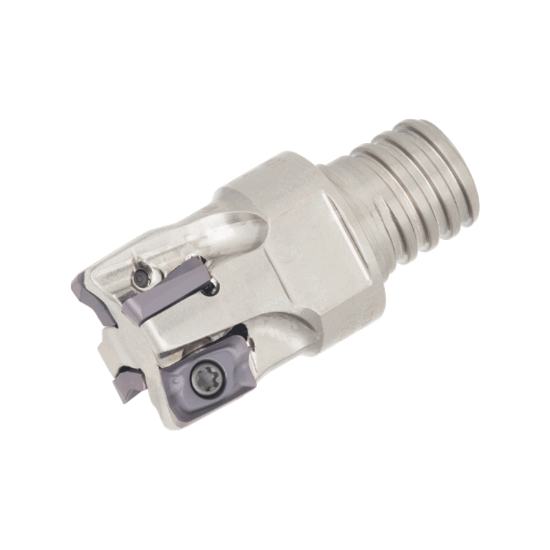

Picture of TUNGALOY HPAV06M016S10R04 Milling Cutter 90.0° 0.630 Cutter Diameter Screw M16 4 Flute

TUNGALOY HPAV06M016S10R04 Milling Cutter 90.0° 0.630 Cutter Diameter Screw M16 4 Flute

ANSI: HPAV06M016S10R04

ISO: HPAV06M016S10R04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6741250
Delivery date: 3-5 days
$403.45

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Face Milling, Pocket Milling, Slot Milling
Insert Application Semi Finishing, Roughing
Package Size 1
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.1570
Cut Dia Max 0.6300 16.00MM
Machine Side Connection Type Screw On
Insert Size Ic 6
Cutter Dia 0.6300 16.00MM
Flutes/Inserts 4
Cut Dia Min 0.6300 16.00MM
Tool Material Steel
Machine Side Connection Size M16
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Coolant Thru No
Insert Style AV
Fasteners & Connectors
Insert Screw 6851333
