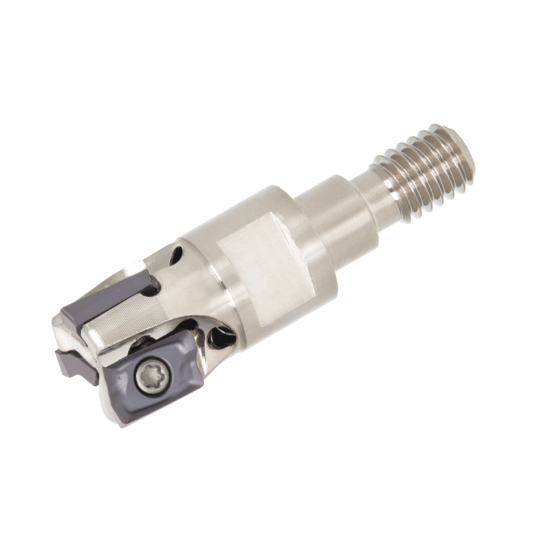

Picture of TUNGALOY HPAV06M016M08R04 Milling Cutter 90.0° 0.630 Cutter Diameter Screw M08 1.653 OAL 4 Flute

TUNGALOY HPAV06M016M08R04 Milling Cutter 90.0° 0.630 Cutter Diameter Screw M08 1.653 OAL 4 Flute

ANSI: HPAV06M016M08R04

ISO: HPAV06M016M08R04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6733145
Delivery date: 3-5 days
$393.75

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Application Pocket Milling, Ramp Milling, Slot Milling, Side Milling, Face Milling
Shipping State Illinois
Insert Type Positive
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Insert Size Ic 6
Cutter Dia 0.6300 16.00MM
Flutes/Inserts 4
Cut Dia Min 0.6300 16.00MM
Tool Material Steel
Depth Of Cut Max 0.2360
Overall Len 1.6535 42.00MM
Machine Side Connection Type Screw On
Cut Dia Max 0.6300 16.00MM
Machine Side Connection Size M08
Cutting & Machining Properties
Coolant Thru Yes
Insert Style AV
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Fasteners & Connectors
Insert Screw 6851333
