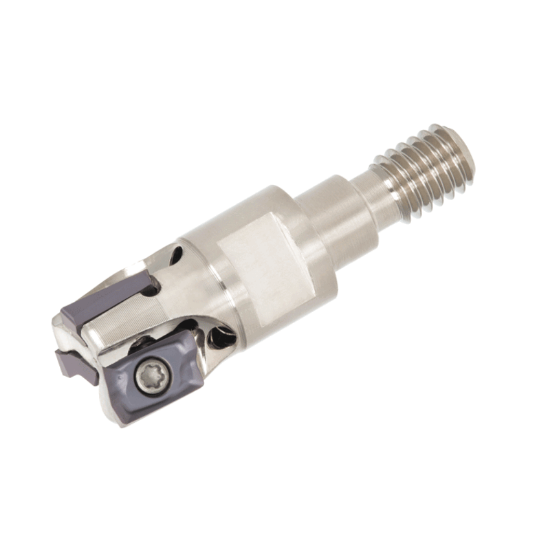

Picture of TUNGALOY HPAV06M016M08R03 Milling Cutter 90.0° 0.630 Cutter Diameter Screw M08 1.653 OAL 3 Flute

TUNGALOY HPAV06M016M08R03 Milling Cutter 90.0° 0.630 Cutter Diameter Screw M08 1.653 OAL 3 Flute

ANSI: HPAV06M016M08R03

ISO: HPAV06M016M08R03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6733143
Delivery date: 3-5 days
$367.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Application Pocket Milling, Face Milling, Ramp Milling, Side Milling, Slot Milling
Insert Type Positive
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Max 0.6300 16.00MM
Tool Material Steel
Depth Of Cut Max 0.2362
Overall Len 1.6535 42.00MM
Flutes/Inserts 3
Insert Size Ic 6
Cutter Dia 0.6300 16.00MM
Cut Dia Min 0.6300 16.00MM
Machine Side Connection Type Screw On
Machine Side Connection Size M08
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Coolant Thru Yes
Insert Style AV
Fasteners & Connectors
Insert Screw 6851333
