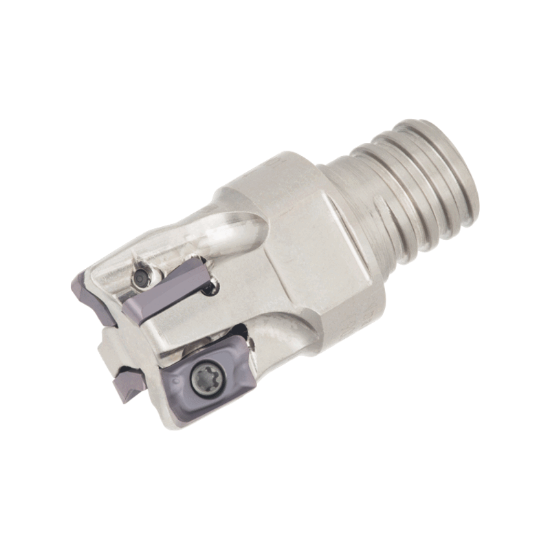

Picture of TUNGALOY HPAV06M012S08R03 Milling Cutter 90.0° 0.472 Cutter Diameter Screw M12 3 Flute

TUNGALOY HPAV06M012S08R03 Milling Cutter 90.0° 0.472 Cutter Diameter Screw M12 3 Flute

ANSI: HPAV06M012S08R03

ISO: HPAV06M012S08R03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6741248
Delivery date: 3-5 days
$359.05

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Insert Size Ic 6
Cutter Dia 0.4720 11.99MM
Tool Material Steel
Flutes/Inserts 3
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Depth Of Cut Max 0.2362
Cut Dia Min 0.4720 11.99MM
Cut Dia Max 0.4720 11.99MM
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Insert Style AV
Fasteners & Connectors
Insert Screw 6851333
