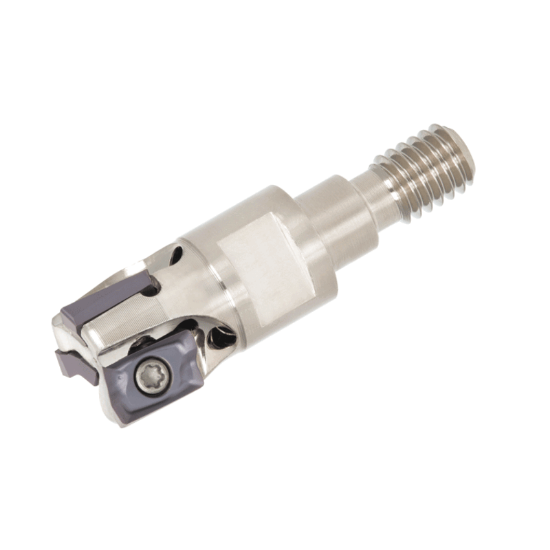

Picture of TUNGALOY HPAV06M012M06R03 Milling Cutter 90.0° 0.472 Cutter Diameter Screw M06 1.358 OAL 3 Flute

TUNGALOY HPAV06M012M06R03 Milling Cutter 90.0° 0.472 Cutter Diameter Screw M06 1.358 OAL 3 Flute

ANSI: HPAV06M012M06R03

ISO: HPAV06M012M06R03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6733144
Delivery date: 3-5 days
$350.30

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Flutes/Inserts 3
Cutter Dia 0.4720 11.99MM
Insert Size Ic 6
Overall Len 1.3583 34.50MM
Depth Of Cut Max 0.2362
Tool Material Steel
Machine Side Connection Size M06
Cut Dia Min 0.4720 11.99MM
Cut Dia Max 0.4720 11.99MM
Machine Side Connection Type Screw On
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Insert Style AV
Fasteners & Connectors
Insert Screw 6851333
