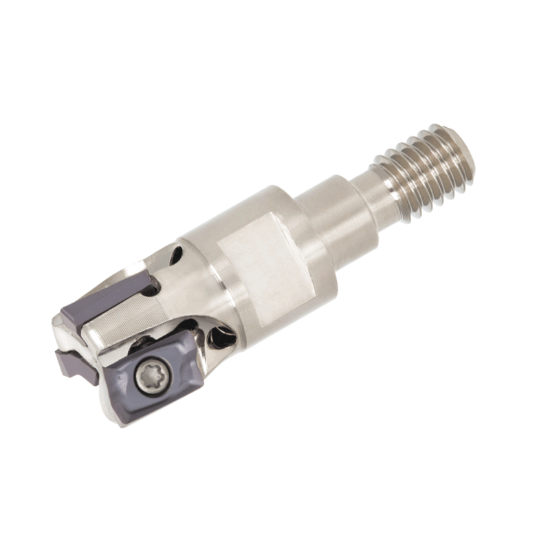

Picture of TUNGALOY HPAV06M012M06R02 Milling Cutter 90.0° 0.472 Cutter Diameter Screw M06 1.358 OAL 2 Flute

TUNGALOY HPAV06M012M06R02 Milling Cutter 90.0° 0.472 Cutter Diameter Screw M06 1.358 OAL 2 Flute

ANSI: HPAV06M012M06R02

ISO: HPAV06M012M06R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6733142
Delivery date: 3-5 days
$327.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Ramp Milling, Slot Milling, Pocket Milling, Side Milling
Package Size 1
Made In USA No
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.2362
Cut Dia Min 0.4720 11.99MM
Cut Dia Max 0.4720 11.99MM
Cutter Dia 0.4720 11.99MM
Machine Side Connection Size M06
Overall Len 1.3583 34.50MM
Tool Material Steel
Machine Side Connection Type Screw On
Insert Size Ic 6
Flutes/Inserts 2
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AV
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6851333
