  • TUNGALOY HPAV06M010S05R02 Milling Cutter 90.0° 0.394 Cutter Diameter Cylindrical Shank0.3150 2 Flute

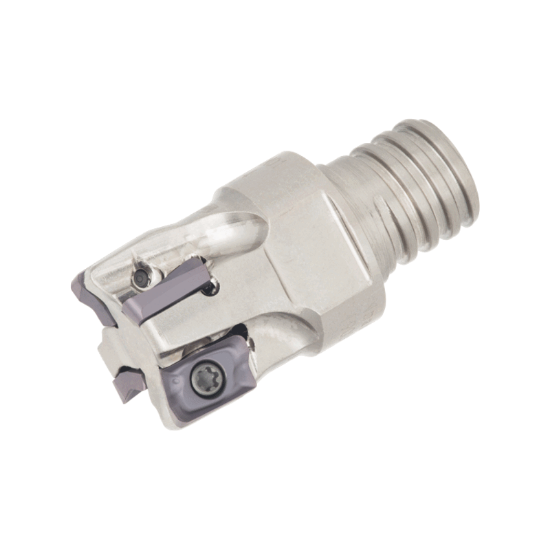

Picture of TUNGALOY HPAV06M010S05R02 Milling Cutter 90.0° 0.394 Cutter Diameter Cylindrical Shank0.3150 2 Flute

TUNGALOY HPAV06M010S05R02 Milling Cutter 90.0° 0.394 Cutter Diameter Cylindrical Shank0.3150 2 Flute

ANSI: HPAV06M010S05R02

ISO: HPAV06M010S05R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6757737
Delivery date: 3-5 days
$312.15

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.2362
Machine Side Connection Type TUN8
Cut Dia Min 0.3940 10.01MM
Tool Material Steel
Cutter Dia 0.3940 10.01MM
Cut Dia Max 0.3940 10.01MM
Machine Side Connection Size 0.3150 8.00MM
Insert Size Ic 6
Flutes/Inserts 2
Cutting & Machining Properties
Inter/Extern External
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Insert Style AV
Fasteners & Connectors
Insert Screw 6851333
