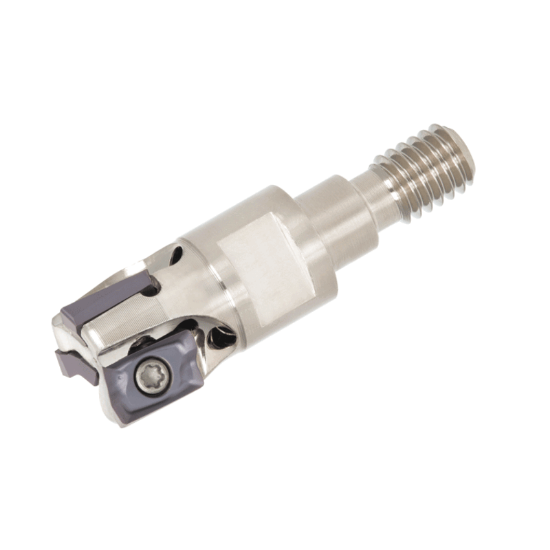

Picture of TUNGALOY HPAV06M010M06R02 Milling Cutter 90.0° 0.394 Cutter Diameter Screw M06 1.358 OAL 2 Flute

TUNGALOY HPAV06M010M06R02 Milling Cutter 90.0° 0.394 Cutter Diameter Screw M06 1.358 OAL 2 Flute

ANSI: HPAV06M010M06R02

ISO: HPAV06M010M06R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6735209
Delivery date: 3-5 days
$304.55

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Insert/Tool Tool
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Made In USA No
Package Size 1
Dimensional Specifications
Cut Dia Min 0.3940 10.01MM
Tool Material Steel
Machine Side Connection Size M06
Overall Len 1.3583 34.50MM
Cutter Dia 0.3940 10.01MM
Machine Side Connection Type Screw On
Depth Of Cut Max 0.1575
Cut Dia Max 0.3940 10.01MM
Insert Size Ic 6
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Insert Style AV
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6851333
