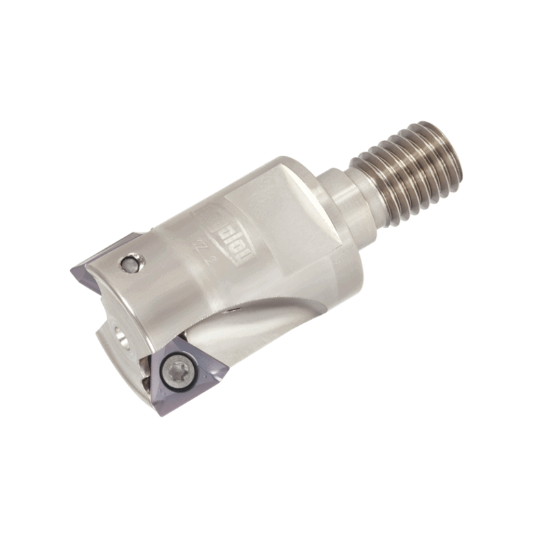

Picture of TUNGALOY HPA10R025MM12-02 Milling Cutter 90.0° 0.984 Cutter Diameter Screw M12 2.244 OAL 2 Flute

TUNGALOY HPA10R025MM12-02 Milling Cutter 90.0° 0.984 Cutter Diameter Screw M12 2.244 OAL 2 Flute

ANSI: HPA10R025MM12-02

ISO: HPA10R025MM12-02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6999312
Delivery date: 3-5 days
$381.05

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Insert Application Semi Finishing, Roughing
Package Size 1
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.0394
Cut Dia Max 0.9840 24.99MM
Cutter Dia 0.9840 24.99MM
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Insert Size Ic 10
Flutes/Inserts 2
Cut Dia Min 0.9840 24.99MM
Tool Material Steel
Overall Len 2.2441 57.00MM
Cutting & Machining Properties
Hand R/L Right
Insert Style TO
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Insert Screw 7002353
