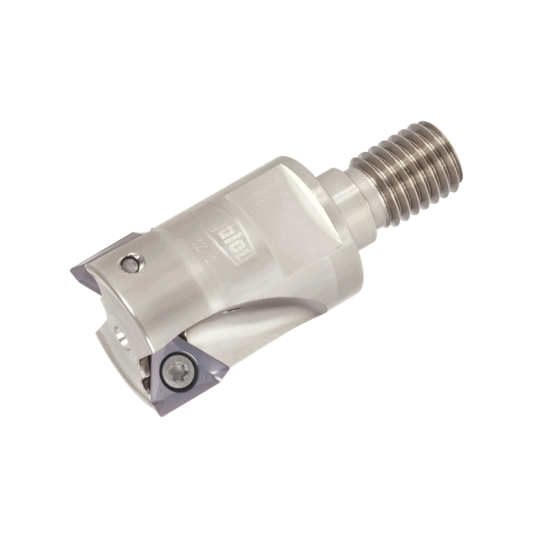

Picture of TUNGALOY HPA06R020MM10-03 Milling Cutter 90.0° 0.787 Cutter Diameter Screw M10 1.929 OAL 3 Flute

TUNGALOY HPA06R020MM10-03 Milling Cutter 90.0° 0.787 Cutter Diameter Screw M10 1.929 OAL 3 Flute

ANSI: HPA06R020MM10-03

ISO: HPA06R020MM10-03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6999379
Delivery date: 3-5 days
$388.25

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Application Pocket Milling, Face Milling, Slot Milling, Ramp Milling, Side Milling
Shipping State Illinois
Insert Type Positive
Package Size 1
Made In USA No
Dimensional Specifications
Overall Len 1.9291 49.00MM
Cut Dia Max 0.7870 19.99MM
Tool Material Steel
Flutes/Inserts 3
Depth Of Cut Max 0.2362
Cutter Dia 0.7870 19.99MM
Machine Side Connection Size M10
Insert Size Ic 6
Cut Dia Min 0.7870 19.99MM
Machine Side Connection Type Screw On
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru Yes
Insert Style TO
Fasteners & Connectors
Insert Screw 6802565
