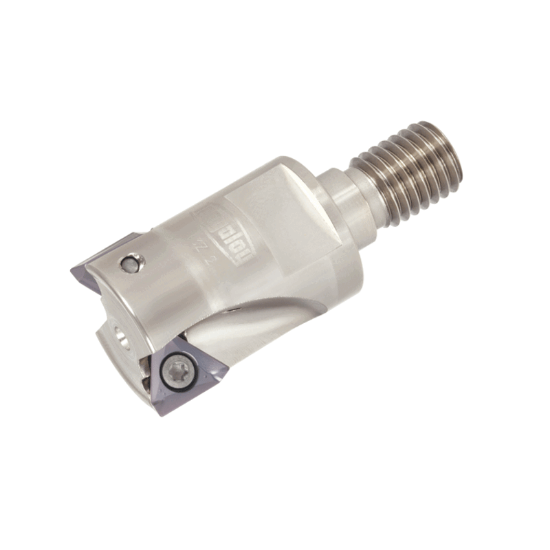

Picture of TUNGALOY HPA06R016MM08-02 Milling Cutter 90.0° 0.630 Cutter Diameter Screw M08 1.653 OAL 2 Flute

TUNGALOY HPA06R016MM08-02 Milling Cutter 90.0° 0.630 Cutter Diameter Screw M08 1.653 OAL 2 Flute

ANSI: HPA06R016MM08-02

ISO: HPA06R016MM08-02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6999378
Delivery date: 3-5 days
$323.50

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Ramp Milling, Side Milling, Slot Milling, Pocket Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.2362
Cut Dia Min 0.6300 16.00MM
Cut Dia Max 0.6300 16.00MM
Machine Side Connection Type Screw On
Machine Side Connection Size M08
Tool Material Steel
Overall Len 1.6535 42.00MM
Insert Size Ic 6
Cutter Dia 0.6300 16.00MM
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Hand R/L Right
Coolant Thru Yes
Insert Style TO
Fasteners & Connectors
Insert Screw 6802565
