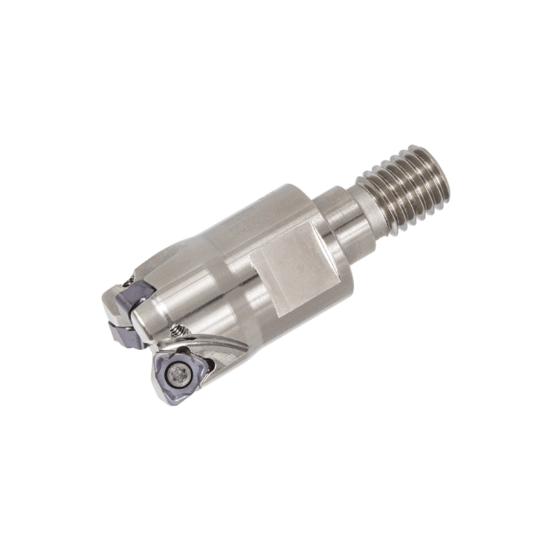

Picture of TUNGALOY HFWX04M025M12R04 Milling Cutter 0.984 Cutter Diameter Screw M12 2.047 OAL 4 Flute

TUNGALOY HFWX04M025M12R04 Milling Cutter 0.984 Cutter Diameter Screw M12 2.047 OAL 4 Flute

ANSI: HFWX04M025M12R04

ISO: HFWX04M025M12R04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6727654
Delivery date: 3-5 days
$370.45

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing
Application Copy Milling, Feed Milling, Profile Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Type Negative
Made In USA No
Dimensional Specifications
Cutter Dia 0.9840 24.99MM
Depth Of Cut Max 0.2362
Cut Dia Max 0.9840 24.99MM
Overall Len 2.0472 52.00MM
Insert Size Ic 4
Cut Dia Min 0.9840 24.99MM
Tool Material Steel
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Flutes/Inserts 4
Cutting & Machining Properties
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WX
Fasteners & Connectors
Insert Screw 7000990
