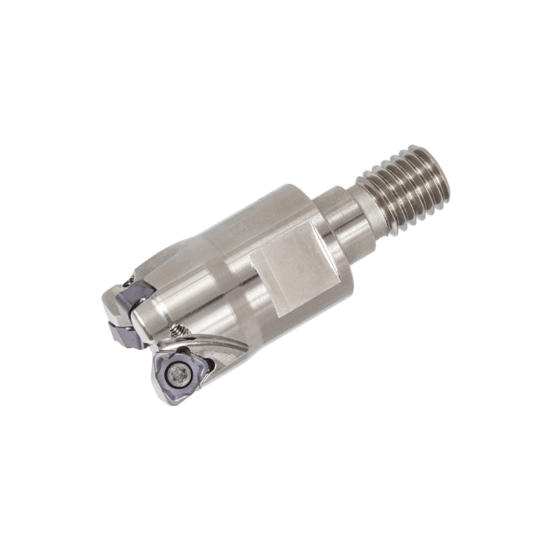

Picture of TUNGALOY HFWX04M020M10R03 Milling Cutter 0.787 Cutter Diameter Screw M10 1.929 OAL 3 Flute

TUNGALOY HFWX04M020M10R03 Milling Cutter 0.787 Cutter Diameter Screw M10 1.929 OAL 3 Flute

ANSI: HFWX04M020M10R03

ISO: HFWX04M020M10R03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6727652
Delivery date: 3-5 days
$326.45

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing
Application Profile Milling, Copy Milling, Feed Milling
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.0197
Cut Dia Min 0.7870 19.99MM
Machine Side Connection Type Screw On
Overall Len 1.9291 49.00MM
Insert Size Ic 4
Cut Dia Max 0.7870 19.99MM
Tool Material Steel
Cutter Dia 0.7870 19.99MM
Flutes/Inserts 3
Machine Side Connection Size M10
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WX
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7000990
