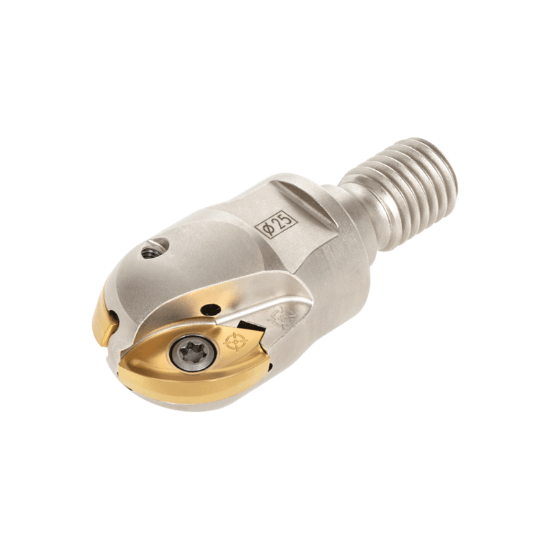

Picture of TUNGALOY HBRM20M10 Milling Cutter 0.787 Cutter Diameter Screw M10 1.968 OAL 2 Flute

TUNGALOY HBRM20M10 Milling Cutter 0.787 Cutter Diameter Screw M10 1.968 OAL 2 Flute

ANSI: HBRM20M10

ISO: HBRM20M10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3113363
Delivery date: 3-5 days
$297.85
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Application Profile Milling, Copy Milling
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.6969
Cutter Dia 0.7870 19.99MM
Flutes/Inserts 2
Cut Dia Min 0.7870 19.99MM
Cut Dia Max 0.7870 19.99MM
Tool Material Steel
Machine Side Connection Size M10
Overall Len 1.9685 50.00MM
Machine Side Connection Type Screw On
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Insert Shape/Cutter Pocket Shape Ball
Fasteners & Connectors
Insert Screw 4353673
