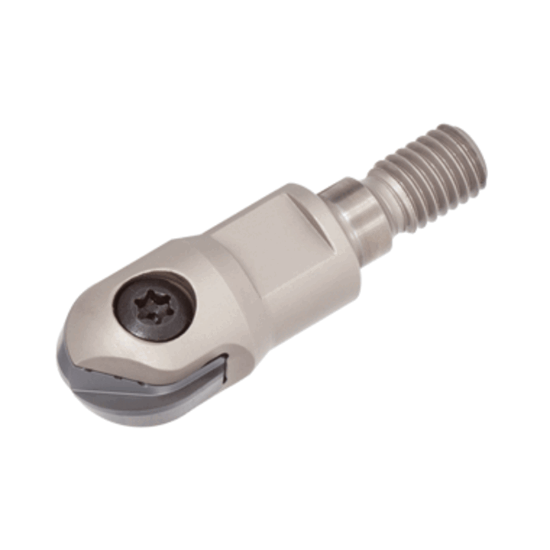

Picture of TUNGALOY HBFM12M08 Milling Cutter 0.472 Cutter Diameter Screw M08 1.574 OAL 1 Flute

TUNGALOY HBFM12M08 Milling Cutter 0.472 Cutter Diameter Screw M08 1.574 OAL 1 Flute

ANSI: HBFM12M08

ISO: HBFM12M08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6725813
Delivery date: 3-5 days
$195.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Profile Milling
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Insert Application Finishing, Semi Finishing
Package Size 1
Dimensional Specifications
Machine Side Connection Size M08
Machine Side Connection Type Screw On
Cutter Dia 0.4720 11.99MM
Tool Material Steel
Overall Len 1.5748 40.00MM
Cut Dia Min 0.4720 11.99MM
Cut Dia Max 0.4720 11.99MM
Depth Of Cut Max 0.3150
Flutes/Inserts 1
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Ball
Hand R/L Right
Fasteners & Connectors
Insert Screw 4355077
