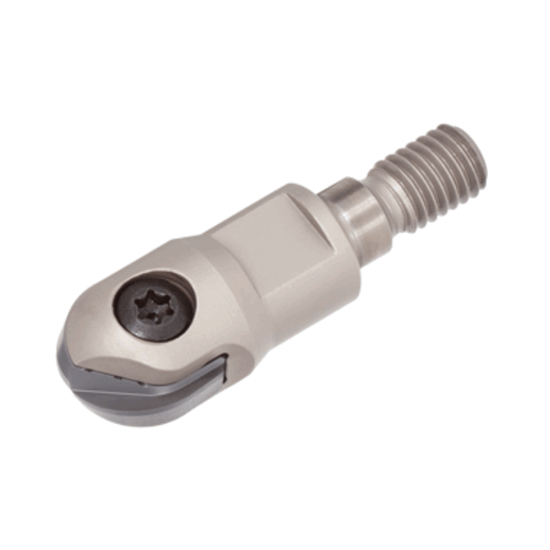

Picture of TUNGALOY HBFM12M06 Milling Cutter 0.472 Cutter Diameter Screw M06 1.476 OAL 1 Flute

TUNGALOY HBFM12M06 Milling Cutter 0.472 Cutter Diameter Screw M06 1.476 OAL 1 Flute

ANSI: HBFM12M06

ISO: HBFM12M06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6725812
Delivery date: 3-5 days
$195.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing
Application Profile Milling, Copy Milling
Package Size 1
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.2362
Cut Dia Min 0.4720 11.99MM
Cut Dia Max 0.4720 11.99MM
Flutes/Inserts 1
Tool Material Steel
Machine Side Connection Size M06
Machine Side Connection Type Screw On
Cutter Dia 0.4720 11.99MM
Overall Len 1.4764 37.50MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Ball
Coolant Thru Yes
Hand R/L Right
Fasteners & Connectors
Insert Screw 4355077
