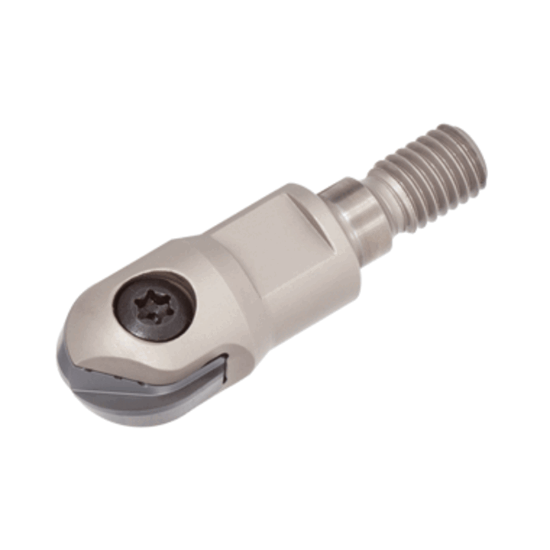

Picture of TUNGALOY HBFM10M06 Milling Cutter 0.394 Cutter Diameter Screw M06 1.358 OAL 1 Flute

TUNGALOY HBFM10M06 Milling Cutter 0.394 Cutter Diameter Screw M06 1.358 OAL 1 Flute

ANSI: HBFM10M06

ISO: HBFM10M06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6725811
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application Finishing, Semi Finishing
Application Profile Milling, Copy Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Screw On
Cut Dia Min 0.3940 10.01MM
Cut Dia Max 0.3940 10.01MM
Depth Of Cut Max 0.2362
Flutes/Inserts 1
Cutter Dia 0.3940 10.01MM
Overall Len 1.3583 34.50MM
Tool Material Steel
Machine Side Connection Size M06
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Ball
Coolant Thru Yes
Hand R/L Right
Fasteners & Connectors
Insert Screw 4355076
