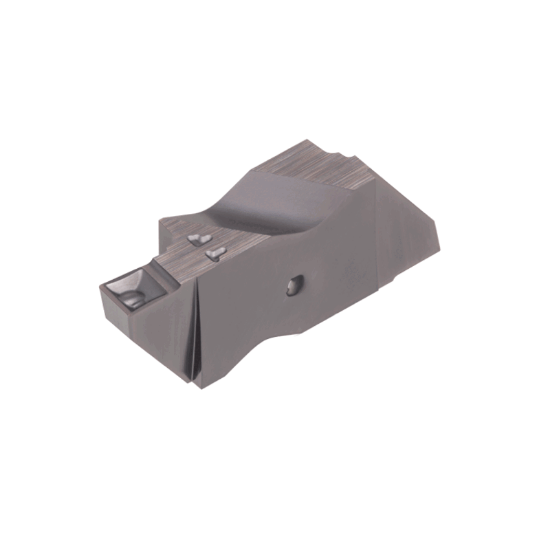

TUNGALOY FLG-3M300R-CB AH110 Top Notch Grooving Insert AlTiN 0.007 Corner Radius 0.118 Wide

ANSI: FLG-3M300R-CB AH110

ISO: FLG-3M300R-CB AH110

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN2412329
Delivery date: 3-5 days
$22.75

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Details

Groove Utility Inserts

Grade and Coating Description

PVD Coated Grade for cast irons and heat resisting alloys. AH110 is sutable for continuous to medium interrupted cutting of cast irons at high speed.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Grade AH110
Insert Type Positive
Package Size 10
Insert/Tool Insert
Coating AlTiN
Application Grooving & Parting Insert
Dimensional Specifications
Insert Size Ic 3
Cut Rating <48HRC Steel, Gray Iron, High Temp, Stainless Steel
Cutting Width 0.1180 3.00MM
Corner Radius 0.0075 0.19MM
Cutting & Machining Properties
Insert Style TOP NOTCH
Cutting Edge Mat Carbide
Insert Shape/Cutter Pocket Shape Top Notch
