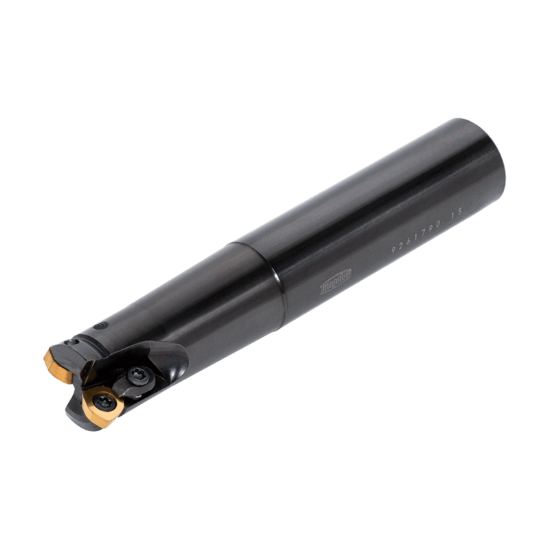

Picture of TUNGALOY EXP06100RLU Milling Cutter 1.000 Cutter Diameter Cylindrical Shank1.0000 8.000 OAL 2 Flute

TUNGALOY EXP06100RLU Milling Cutter 1.000 Cutter Diameter Cylindrical Shank1.0000 8.000 OAL 2 Flute

ANSI: EXP06100RLU

ISO: EXP06100RLU

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6851056
Delivery date: 3-5 days
$389.10

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Feed Milling, Ramp Milling, Slot Milling, Face Milling
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Dimensional Specifications
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Depth Of Cut Max 0.0600
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Cutter Dia 1.0000 25.40MM
Overall Len 8.0000 203.20MM
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Trigon
Hand R/L Right
Fasteners & Connectors
Insert Screw 6816784
Clamp/Wedge 6817339
