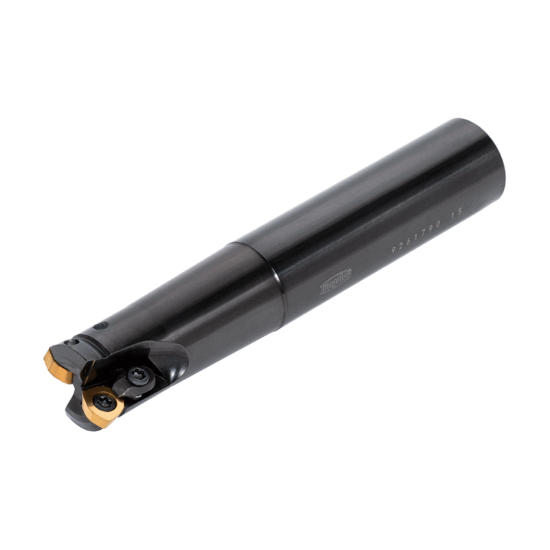

Picture of TUNGALOY EXP06040RLL Milling Cutter 1.575 Cutter Diameter Cylindrical Shank1.2598 11.81 OAL 3 Flute

TUNGALOY EXP06040RLL Milling Cutter 1.575 Cutter Diameter Cylindrical Shank1.2598 11.81 OAL 3 Flute

ANSI: EXP06040RLL

ISO: EXP06040RLL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6821042
Delivery date: 3-5 days
$502.45

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Application Face Milling, Copy Milling, Feed Milling, Ramp Milling, Slot Milling
Package Size 1
Dimensional Specifications
Cutter Dia 1.5750 40.01MM
Tool Material Steel
Machine Side Connection Size 1.2598 32.00MM
Cut Dia Min 1.5750 40.01MM
Shank/Pilot Dia 1.2598 32.00MM
Flutes/Inserts 3
Machine Side Connection Type Cylindrical
Cut Dia Max 1.5750 40.01MM
Depth Of Cut Max 0.0591
Overall Len 11.8110 300.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Coolant Thru Yes
Hand R/L Right
Fasteners & Connectors
Insert Screw 6816784
Clamp/Wedge 6817339
