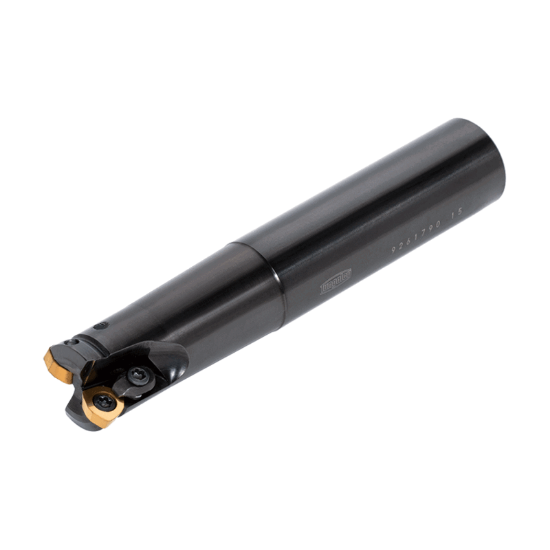

Picture of TUNGALOY EXP06032RSB Milling Cutter 1.260 Cutter Diameter Cylindrical Shank1.2598 5.905 OAL 3 Flute

TUNGALOY EXP06032RSB Milling Cutter 1.260 Cutter Diameter Cylindrical Shank1.2598 5.905 OAL 3 Flute

ANSI: EXP06032RSB

ISO: EXP06032RSB

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6817118
Delivery date: 3-5 days
$454.05

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Feed Milling, Face Milling, Slot Milling, Ramp Milling, Copy Milling
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Cut Dia Min 1.2600 32.00MM
Machine Side Connection Type Cylindrical
Overall Len 5.9055 150.00MM
Tool Material Steel
Cut Dia Max 1.2600 32.00MM
Flutes/Inserts 3
Shank/Pilot Dia 1.2598 32.00MM
Cutter Dia 1.2600 32.00MM
Depth Of Cut Max 0.0591
Machine Side Connection Size 1.2598 32.00MM
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Trigon
Coolant Thru Yes
Fasteners & Connectors
Clamp/Wedge 6817339
Insert Screw 6816784
