  • TUNGALOY EXN03R100U0100-04L Milling Cutter 1.000 Cutter Diameter Cylindrical Shank1.0000 7.000 OAL 4 Flute

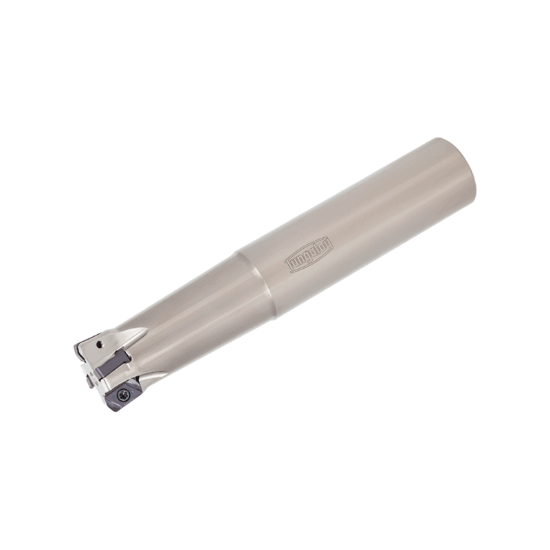

Picture of TUNGALOY EXN03R100U0100-04L Milling Cutter 1.000 Cutter Diameter Cylindrical Shank1.0000 7.000 OAL 4 Flute

TUNGALOY EXN03R100U0100-04L Milling Cutter 1.000 Cutter Diameter Cylindrical Shank1.0000 7.000 OAL 4 Flute

ANSI: EXN03R100U0100-04L

ISO: EXN03R100U0100-04L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6864873
Delivery date: 3-5 days
$514.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Ramp Milling, Slot Milling, Copy Milling, Feed Milling
Package Size 1
Insert Application General Purpose
Shipping State Illinois
Insert/Tool Tool
Insert Type Negative
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.0390
Overall Len 7.0000 177.80MM
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Insert Size Ic 30
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 4
Cutting & Machining Properties
Insert Style LN
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Rectagonal
Fasteners & Connectors
Insert Screw 6815313
