  • TUNGALOY EXN03R075U0075-02 Milling Cutter 0.750 Cutter Diameter Cylindrical Shank0.7500 5.000 OAL 2 Flute

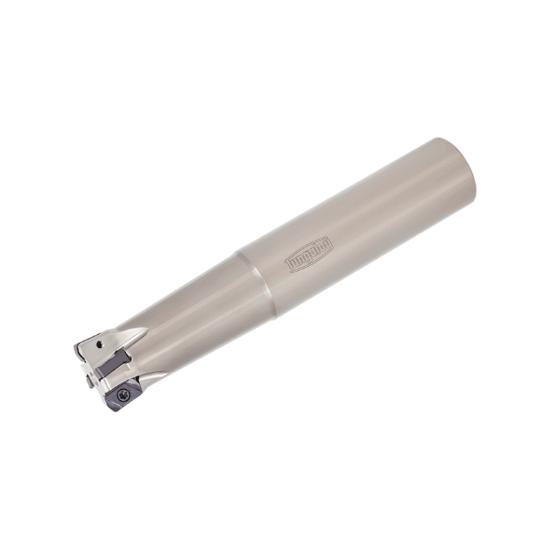

Picture of TUNGALOY EXN03R075U0075-02 Milling Cutter 0.750 Cutter Diameter Cylindrical Shank0.7500 5.000 OAL 2 Flute

TUNGALOY EXN03R075U0075-02 Milling Cutter 0.750 Cutter Diameter Cylindrical Shank0.7500 5.000 OAL 2 Flute

ANSI: EXN03R075U0075-02

ISO: EXN03R075U0075-02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6715182
Delivery date: 3-5 days
$291.50

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Feed Milling, Ramp Milling, Slot Milling, Face Milling
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Package Size 1
Insert Type Negative
Made In USA No
Dimensional Specifications
Machine Side Connection Type Cylindrical
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Max 0.7500 19.05MM - 3/4
Tool Material Steel
Depth Of Cut Max 0.0390
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Insert Size Ic 30
Overall Len 5.0000 127.00MM
Cutting & Machining Properties
Insert Style LN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Rectagonal
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6815313
