  • TUNGALOY EXN03R062U0062-02 Milling Cutter 0.625 Cutter Diameter Cylindrical Shank0.6250 4.000 OAL 2 Flute

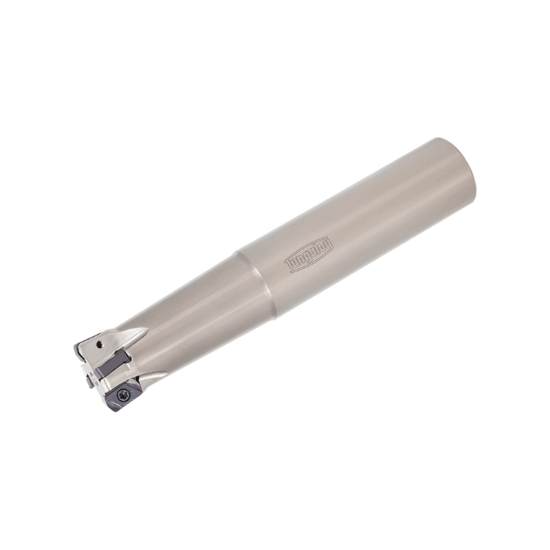

Picture of TUNGALOY EXN03R062U0062-02 Milling Cutter 0.625 Cutter Diameter Cylindrical Shank0.6250 4.000 OAL 2 Flute

TUNGALOY EXN03R062U0062-02 Milling Cutter 0.625 Cutter Diameter Cylindrical Shank0.6250 4.000 OAL 2 Flute

ANSI: EXN03R062U0062-02

ISO: EXN03R062U0062-02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6865490
Delivery date: 3-5 days
$242.70

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Feed Milling, Face Milling, Ramp Milling, Slot Milling
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.6250 15.88MM
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutter Dia 0.6250 15.88MM - 5/8
Cut Dia Min 0.6250 15.88MM - 5/8
Depth Of Cut Max 0.0390
Flutes/Inserts 2
Insert Size Ic 30
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Rectagonal
Coolant Thru Yes
Insert Style LN
Hand R/L Right
Fasteners & Connectors
Insert Screw 6815313
