  • TUNGALOY EXN03R022M20.0-04 Milling Cutter 0.866 Cutter Diameter Cylindrical Shank0.7874 5.118 OAL 4 Flute

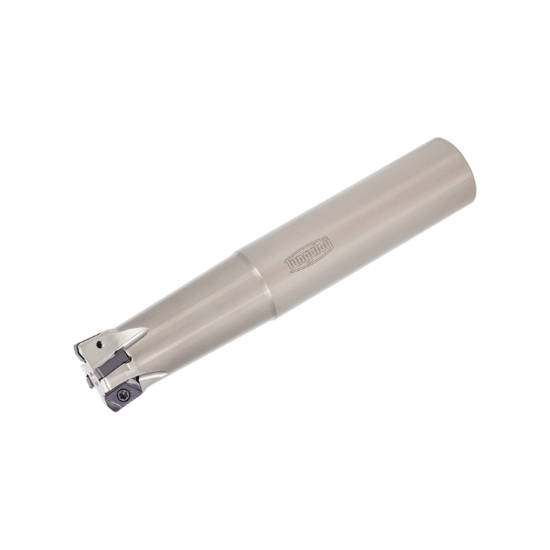

Picture of TUNGALOY EXN03R022M20.0-04 Milling Cutter 0.866 Cutter Diameter Cylindrical Shank0.7874 5.118 OAL 4 Flute

TUNGALOY EXN03R022M20.0-04 Milling Cutter 0.866 Cutter Diameter Cylindrical Shank0.7874 5.118 OAL 4 Flute

ANSI: EXN03R022M20.0-04

ISO: EXN03R022M20.0-04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6862534
Delivery date: 3-5 days
$346.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Face Milling, Copy Milling, Feed Milling, Ramp Milling, Slot Milling
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 30
Cut Dia Max 0.8660 22.00MM
Depth Of Cut Max 0.0390
Flutes/Inserts 4
Cutter Dia 0.8660 22.00MM
Overall Len 5.1181 130.00MM
Tool Material Steel
Machine Side Connection Type Cylindrical
Cut Dia Min 0.8660 22.00MM
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Cutting & Machining Properties
Insert Style LN
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Rectagonal
Fasteners & Connectors
Insert Screw 6815313
