  • TUNGALOY EXN03R020M20.0-03L Milling Cutter 0.787 Cutter Diameter Cylindrical Shank0.7874 6.299 OAL 3 Flute

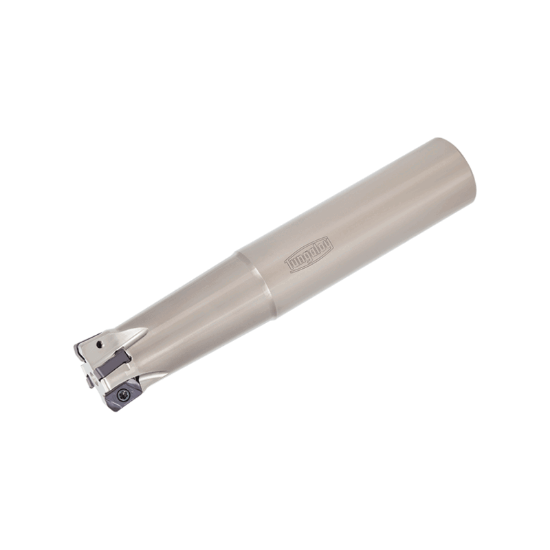

Picture of TUNGALOY EXN03R020M20.0-03L Milling Cutter 0.787 Cutter Diameter Cylindrical Shank0.7874 6.299 OAL 3 Flute

TUNGALOY EXN03R020M20.0-03L Milling Cutter 0.787 Cutter Diameter Cylindrical Shank0.7874 6.299 OAL 3 Flute

ANSI: EXN03R020M20.0-03L

ISO: EXN03R020M20.0-03L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6862531
Delivery date: 3-5 days
$403.10

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Feed Milling, Ramp Milling, Face Milling, Slot Milling
Insert/Tool Tool
Shipping State Illinois
Insert Application General Purpose
Insert Type Negative
Made In USA No
Package Size 1
Dimensional Specifications
Cut Dia Min 0.7870 19.99MM
Machine Side Connection Type Cylindrical
Cut Dia Max 0.7870 19.99MM
Tool Material Steel
Insert Size Ic 30
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Overall Len 6.2992 160.00MM
Depth Of Cut Max 0.0390
Cutter Dia 0.7870 19.99MM
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Rectagonal
Insert Style LN
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6815313
