  • TUNGALOY EXN03R020M20.0-03 Milling Cutter 0.787 Cutter Diameter Cylindrical Shank0.7874 5.118 OAL 3 Flute

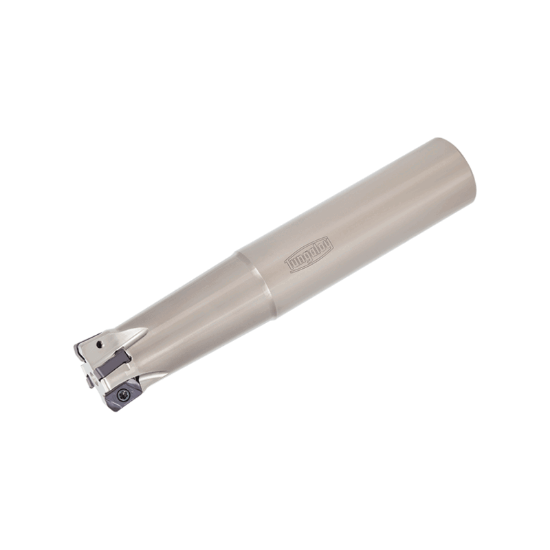

Picture of TUNGALOY EXN03R020M20.0-03 Milling Cutter 0.787 Cutter Diameter Cylindrical Shank0.7874 5.118 OAL 3 Flute

TUNGALOY EXN03R020M20.0-03 Milling Cutter 0.787 Cutter Diameter Cylindrical Shank0.7874 5.118 OAL 3 Flute

ANSI: EXN03R020M20.0-03

ISO: EXN03R020M20.0-03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6715175
Delivery date: 3-5 days
$323.70

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Copy Milling, Feed Milling, Face Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Max 0.7870 19.99MM
Tool Material Steel
Insert Size Ic 30
Machine Side Connection Type Cylindrical
Depth Of Cut Max 0.0390
Cutter Dia 0.7870 19.99MM
Overall Len 5.1181 130.00MM
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Cut Dia Min 0.7870 19.99MM
Flutes/Inserts 3
Cutting & Machining Properties
Insert Style LN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Rectagonal
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6815313
