  • TUNGALOY EXLS02M012C12.0LH20R03 Milling Cutter Feed Mill 0.472 Cutter Diameter Cylindrical Shank0.4724 3.149 OAL 3 Flute

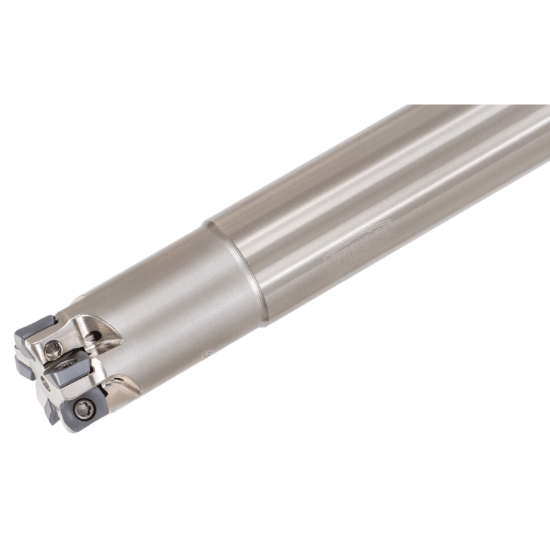

Picture of TUNGALOY EXLS02M012C12.0LH20R03 Milling Cutter Feed Mill 0.472 Cutter Diameter Cylindrical Shank0.4724 3.149 OAL 3 Flute

TUNGALOY EXLS02M012C12.0LH20R03 Milling Cutter Feed Mill 0.472 Cutter Diameter Cylindrical Shank0.4724 3.149 OAL 3 Flute

ANSI: EXLS02M012C12.0LH20R03

ISO: EXLS02M012C12.0LH20R03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6770130
Delivery date: 3-5 days
$336.95

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Pocket Milling, Feed Milling
Made In USA No
Shipping State Illinois
Insert Application Roughing
Insert/Tool Tool
Insert Type Positive
Package Size 1
Dimensional Specifications
Cutter Dia 0.4720 11.99MM
Depth Of Cut Max 0.0787
Tool Material Steel
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.4724 12.00MM
Flutes/Inserts 3
Shank/Pilot Dia 0.4724 12.00MM
Overall Len 3.1496 80.00MM
Insert Size Ic 2
Cut Dia Min 0.3270 8.31MM
Cut Dia Max 0.4720 11.99MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Insert Style LS
Coolant Thru Yes
Inter/Extern External
Fasteners & Connectors
Insert Screw 6851333
