  • TUNGALOY EXH06R010M10.0-02 Milling Cutter 0.394 Cutter Diameter Cylindrical Shank0.3937 3.543 OAL 2 Flute

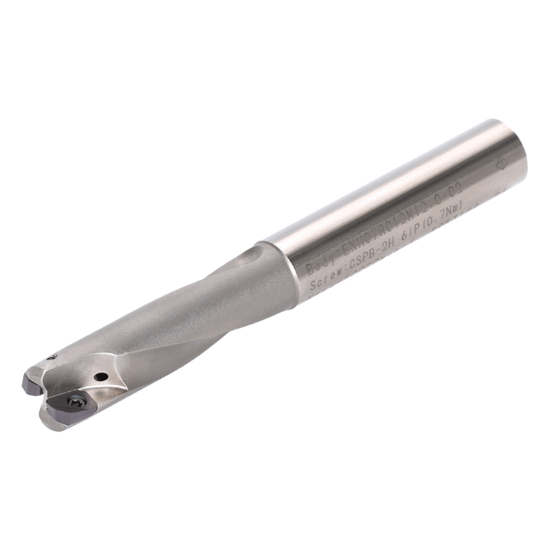

Picture of TUNGALOY EXH06R010M10.0-02 Milling Cutter 0.394 Cutter Diameter Cylindrical Shank0.3937 3.543 OAL 2 Flute

TUNGALOY EXH06R010M10.0-02 Milling Cutter 0.394 Cutter Diameter Cylindrical Shank0.3937 3.543 OAL 2 Flute

ANSI: EXH06R010M10.0-02

ISO: EXH06R010M10.0-02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6852773
Delivery date: 3-5 days
$266.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Made In USA No
Application Copy Milling, Feed Milling, Face Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Application General Purpose
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.0236
Cut Dia Max 0.3940 10.01MM
Flutes/Inserts 2
Cutter Dia 0.3940 10.01MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3937 10.00MM
Cut Dia Min 0.3940 10.01MM
Overall Len 3.5433 90.00MM
Tool Material Steel
Machine Side Connection Size 0.3937 10.00MM
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Inter/Extern External
Fasteners & Connectors
Insert Screw 6853888
