  • TUNGALOY EWD10025R Milling Cutter Button Cutter 0.984 Cutter Diameter Cylindrical Shank1.2598 7.677 OAL 3 Flute

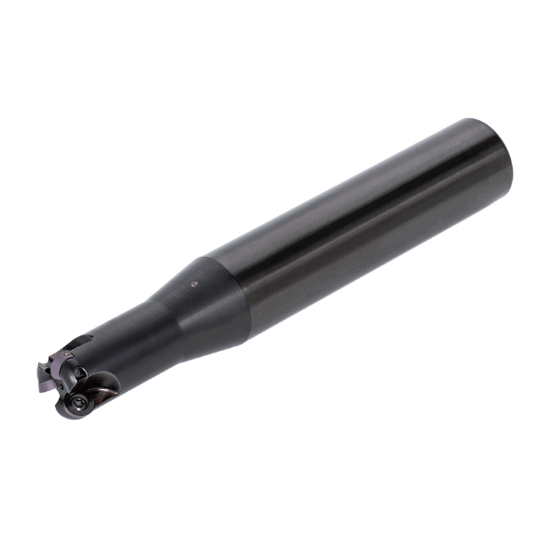

Picture of TUNGALOY EWD10025R Milling Cutter Button Cutter 0.984 Cutter Diameter Cylindrical Shank1.2598 7.677 OAL 3 Flute

TUNGALOY EWD10025R Milling Cutter Button Cutter 0.984 Cutter Diameter Cylindrical Shank1.2598 7.677 OAL 3 Flute

ANSI: EWD10025R

ISO: EWD10025R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6817722
Delivery date: 3-5 days
$335.90

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Round Milling, Ramp Milling, Face Milling, Pocket Milling
Made In USA No
Insert Type Positive
Insert/Tool Tool
Package Size 1
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 0.5910 15.01MM
Cut Dia Max 0.9840 24.99MM
Flutes/Inserts 3
Insert Size Ic 10
Depth Of Cut Max 0.1960
Shank/Pilot Dia 1.2598 32.00MM
Cutter Dia 0.9840 24.99MM
Machine Side Connection Type Cylindrical
Overall Len 7.6772 195.00MM
Tool Material Steel
Machine Side Connection Size 1.2598 32.00MM
Cutting & Machining Properties
Coolant Thru No
Insert Style RD
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Fasteners & Connectors
Insert Screw 6810166
