  • TUNGALOY EWD07020R Milling Cutter Button Cutter 0.787 Cutter Diameter Cylindrical Shank0.9843 6.692 OAL 4 Flute

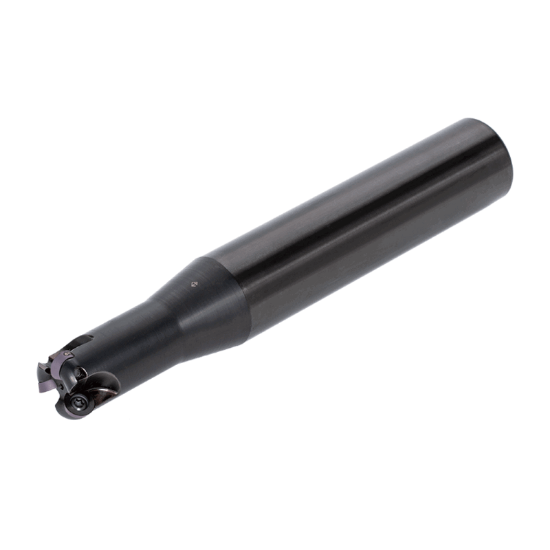

Picture of TUNGALOY EWD07020R Milling Cutter Button Cutter 0.787 Cutter Diameter Cylindrical Shank0.9843 6.692 OAL 4 Flute

TUNGALOY EWD07020R Milling Cutter Button Cutter 0.787 Cutter Diameter Cylindrical Shank0.9843 6.692 OAL 4 Flute

ANSI: EWD07020R

ISO: EWD07020R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6817719
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Face Milling, Pocket Milling, Round Milling, Ramp Milling
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Machine Side Connection Type Cylindrical
Insert Size Ic 7
Depth Of Cut Max 0.1380
Cut Dia Max 0.7870 19.99MM
Tool Material Steel
Overall Len 6.6929 170.00MM
Cutter Dia 0.7870 19.99MM
Flutes/Inserts 4
Cut Dia Min 0.5120 13.00MM
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RD
Coolant Thru No
Fasteners & Connectors
Insert Screw 6802565
