  • TUNGALOY EWD05015R Milling Cutter Button Cutter 0.984 Cutter Diameter Cylindrical Shank0.7874 5.905 OAL 4 Flute

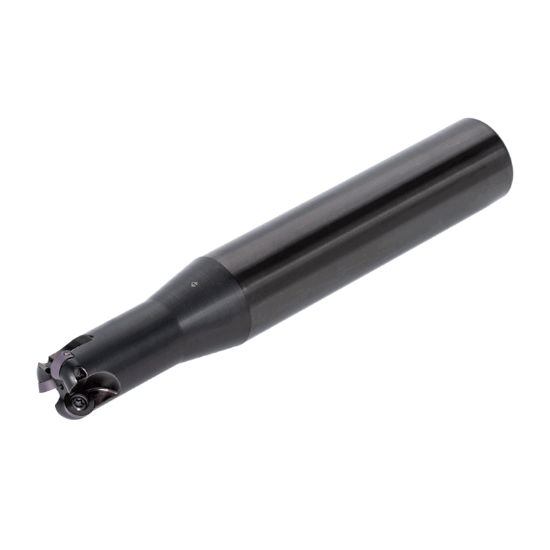

Picture of TUNGALOY EWD05015R Milling Cutter Button Cutter 0.984 Cutter Diameter Cylindrical Shank0.7874 5.905 OAL 4 Flute

TUNGALOY EWD05015R Milling Cutter Button Cutter 0.984 Cutter Diameter Cylindrical Shank0.7874 5.905 OAL 4 Flute

ANSI: EWD05015R

ISO: EWD05015R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6817716
Delivery date: 3-5 days
$398.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Round Milling, Pocket Milling, Ramp Milling, Face Milling
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Flutes/Inserts 4
Machine Side Connection Size 0.7874 20.00MM
Insert Size Ic 5
Tool Material Steel
Cut Dia Min 0.3940 10.01MM
Shank/Pilot Dia 0.7874 20.00MM
Cutter Dia 0.9840 24.99MM
Cut Dia Max 0.5910 15.01MM
Machine Side Connection Type Cylindrical
Overall Len 5.9055 150.00MM
Depth Of Cut Max 0.9840
Cutting & Machining Properties
Insert Style RD
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru No
Fasteners & Connectors
Insert Screw 6818188
