  • TUNGALOY EVX16125RSU Milling Cutter 90.0°, Drill Mill 1.250 Cutter Diameter Cylindrical Shank1.2500 4.281 OAL 2 Flute

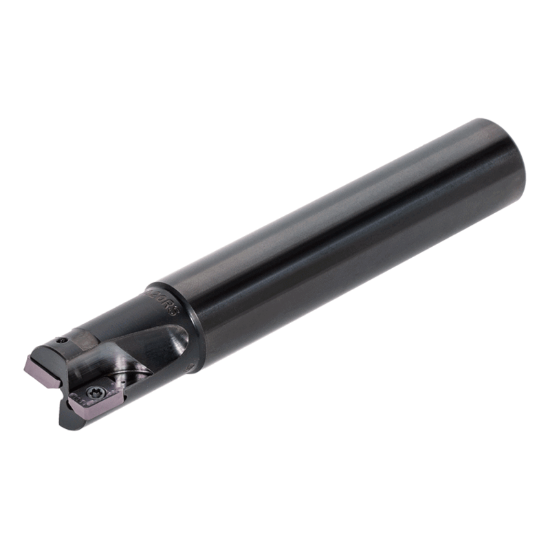

Picture of TUNGALOY EVX16125RSU Milling Cutter 90.0°, Drill Mill 1.250 Cutter Diameter Cylindrical Shank1.2500 4.281 OAL 2 Flute

TUNGALOY EVX16125RSU Milling Cutter 90.0°, Drill Mill 1.250 Cutter Diameter Cylindrical Shank1.2500 4.281 OAL 2 Flute

ANSI: EVX16125RSU

ISO: EVX16125RSU

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6829634
Delivery date: 3-5 days
$298.45
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Slot Milling, Plunge Milling, Side Milling, Drill Milling
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Package Size 1
Dimensional Specifications
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.2500 31.75MM
Depth Of Cut Max 0.4170
Tool Material Steel
Overall Len 4.2810 108.74MM
Cut Dia Min 1.2500 31.75MM - 1-1/4
Cut Dia Max 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Style XX
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6815314
