  • TUNGALOY EVX12025RSA-E Milling Cutter 90.0°, Drill Mill 0.984 Cutter Diameter Weldon 0.9843 39.37 OAL 2 Flute

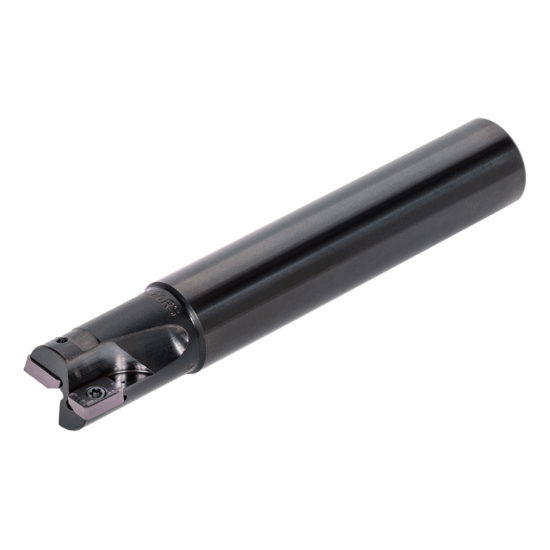

Picture of TUNGALOY EVX12025RSA-E Milling Cutter 90.0°, Drill Mill 0.984 Cutter Diameter Weldon 0.9843 39.37 OAL 2 Flute

TUNGALOY EVX12025RSA-E Milling Cutter 90.0°, Drill Mill 0.984 Cutter Diameter Weldon 0.9843 39.37 OAL 2 Flute

ANSI: EVX12025RSA-E

ISO: EVX12025RSA-E

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6821660
Delivery date: 3-5 days
$277.35
Products specifications
Attribute name Attribute value
General Product Information
Application Plunge Milling, Ramp Milling, Side Milling, Pocket Milling, Shoulder Milling, Slot Milling, Drilling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Dimensional Specifications
Cut Dia Max 0.9840 24.99MM
Shank/Pilot Dia 0.9843 25.00MM
Flutes/Inserts 2
Cut Dia Min 0.9840 24.99MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Machine Side Connection Type Weldon
Depth Of Cut Max 0.4530
Cutter Dia 0.9840 24.99MM
Overall Len 39.3700 1000.00MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Insert Style XX
Fasteners & Connectors
Insert Screw 6815315
